Orifice Fittings BSP
Series of BSP Adapters with internal thread

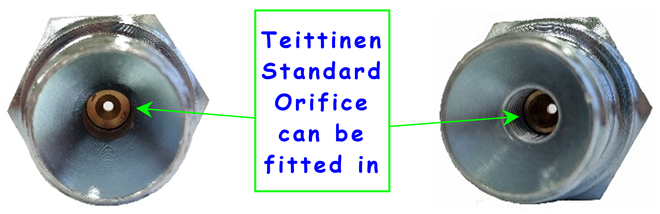

- A Precision Orifice can be added inside (Teittinen standard)
Ideal Solution for OEM's
An orifice/hydraulic nozzle has a tightly tolerated restriction point
- More consistent throttling function (less dependant on operating conditions)
- Repeatable system behaviour for every serial machine (less deviance)
If more/less throttling is needed --> Orifice fittings allow for the restriction point to be changed
- Exact step-changes to the throttling function
- Bore-Size Marking = Easy identification = Clarity & No errors
Pick & Combine as you wish (Big stock)
Same-Day Delivery commonly possible
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Orifice Nipple Male-Male
- Inner cone: 60° sealing cone (2 x 30°)
- Fitting form: DIN 3858 - Form A
Fitting threads |
G1/4 - G1/4 |
G3/8 - G3/8 |
G1/2 - G1/2 |
|---|---|---|---|
| Inner thread (for orifice) | M5 | M8 | M8 |
| Outer Hex | 19 | 22 | 27 |
| Outer length | 31,5 | 35,6 | 43,8 |
| BSP-length | 11 | 12,7 | 15 |
| Weight | ~30g | ~50g | ~100g |
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
T-Female Restrictor

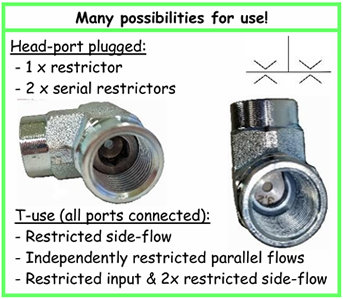

Head port: Only a port (or plugged)

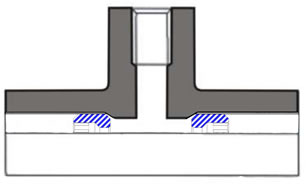

Side ports: Orifice spaces (Extended port threads)
Ports (3x) |
G3/8 |
|---|---|
| Body length | 54 |
| Body height | 39 |
| Weight | ~110g |
