Datasheet / Pricelist

Orifice-Set (pdf)

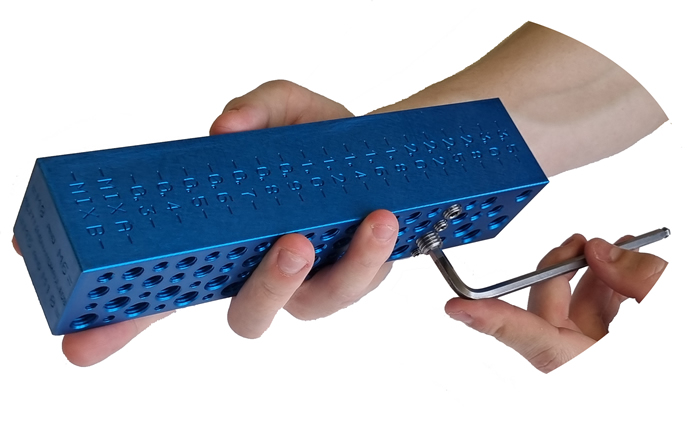

ORIFICE SET (Your collection in a casing)

CHOOSE your Kit:

Desired M-size(s)

(one or several):

M5 M6 M8 M10

and

Desired amount of "Hole-Range Rows"

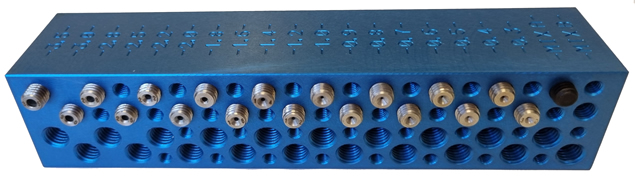

Kuristin Setti Lajitelmarivi M8

Please see Datasheet/Pricelist (pdf)

Casing

Metal - Light (weight ~800g)
Surface treated
Hole size markings
- 0,3/0,4/0,5/0,6/0,7/0,8/0,9/1,0/1,2/1,4/1,6/1,8/2,0/2,2/2,5/2,8/3,0/3,5
- „MIX A“ (plug) / „MIX B“ (free/empty thread)

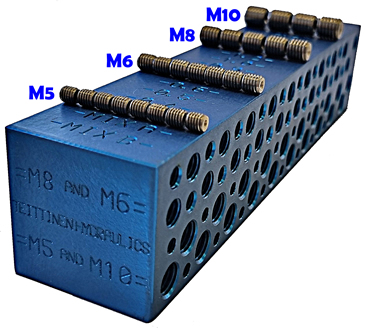

Through threads:
- M5: Ø0,3 – Ø2,2 (14 hole sizes)
- M6: Ø0,3 – Ø2,8 (16 hole sizes)
- M8: Ø0,3 – Ø3,5 (18 hole sizes)
- M10: Ø0,3 – Ø3,5 (18 hole sizes)
Same through-thread → Fits several orifices (one behind each other)

Precision Orifices (Hydraulic Nozzles)

Full-thread
Steel
Length=M-size

Bore-Size marking
Throttling point: tight Ø-tolerance / short
Robust construction

Additional infos - Please see:

Precision Orifices and Nozzles/Orifices-datasheet (pdf)

Tailoring of kits / modifications possible

MIX A / MIX B --> Filling (instead of a plug) with desired orifices
- Larger bore diameters possible
  - M5: ø0,2 … ø2,4
  - M6: ø0,2 … ø2,9
  - M8: ø0,2 … ø3,9
  - M10: ø0,3 … ø5,0
- Intermittent sizes possible --> e.g. ø0,35 mm
Other material: e.g. brass

Pick Your Set:

WE ASSEMBLE & DELIVER QUICK

(ALL PARTS IN STOCK)
